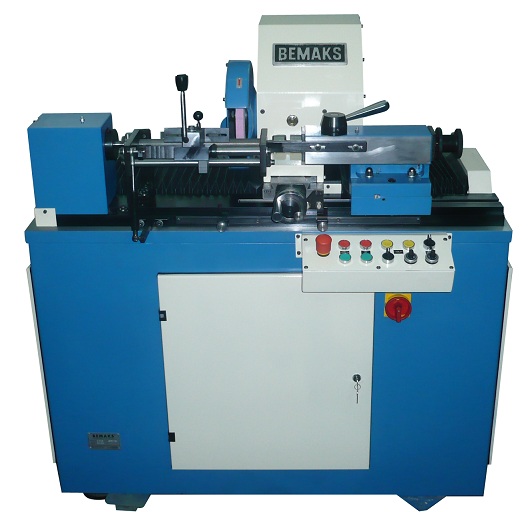

SDR510 Rectified sleeve Machine

Ring Cuffs, cotton prints, drawing rollers, open-end, texture and other in over a period of time after use of various types of sleeve wear and deformation malaria occurs.

These deformities, rectified made ready for use again. Grinding required for Quality provides economic benefits also flow reuse. Producing today sleeve grinding machine from 1986, our company has less power consumption by evaluating the economic conditions, but also to protect sensitive values produced more practical SDR510 grinding machine.


  • SDR510 grinding machine couplings, sheet metal body on the cast iron plate, linear slide bearings, mechanical drive makes moving stones and rectified as hard work.
  • Draw, combing and roving between the two center cylinders, open-end and ring-sleeve environment driven by it rectified.
  • by linear slides and ball screws timed circulating oil pump oil, to provide precise and long lasting operation.
  • Bellows design with linear slides are protected from any contaminants that can damage and dust.
  • The new apparatus system is provided practical pressure changes.
  • The sleeve is rotated between the rotation and acting as a pivot bearing two centers
  • The group is provided with bedding that translates the drive center.
  • Clutches rotating shaft (drive shaft) rotational speed of the inverter allows the use of variable speed.
  • Clutches taper settings are practical and easy to use.
  • Ring apparatus dismantled draw, drawing and combing shafts made rectified.
